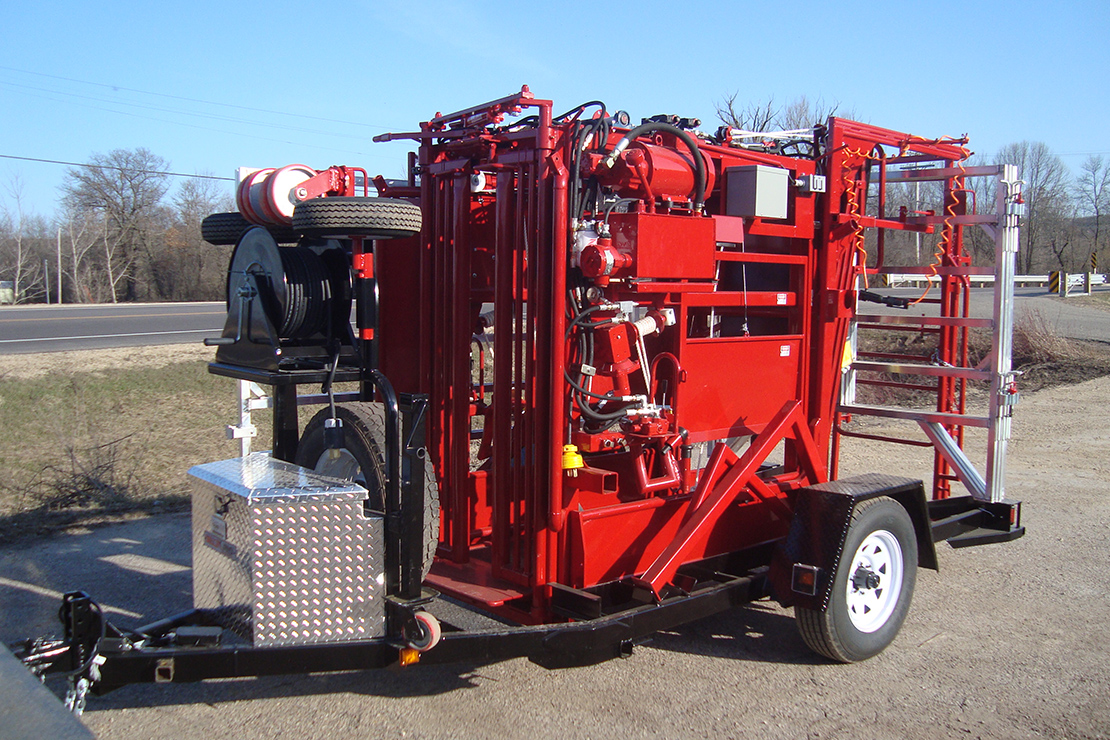

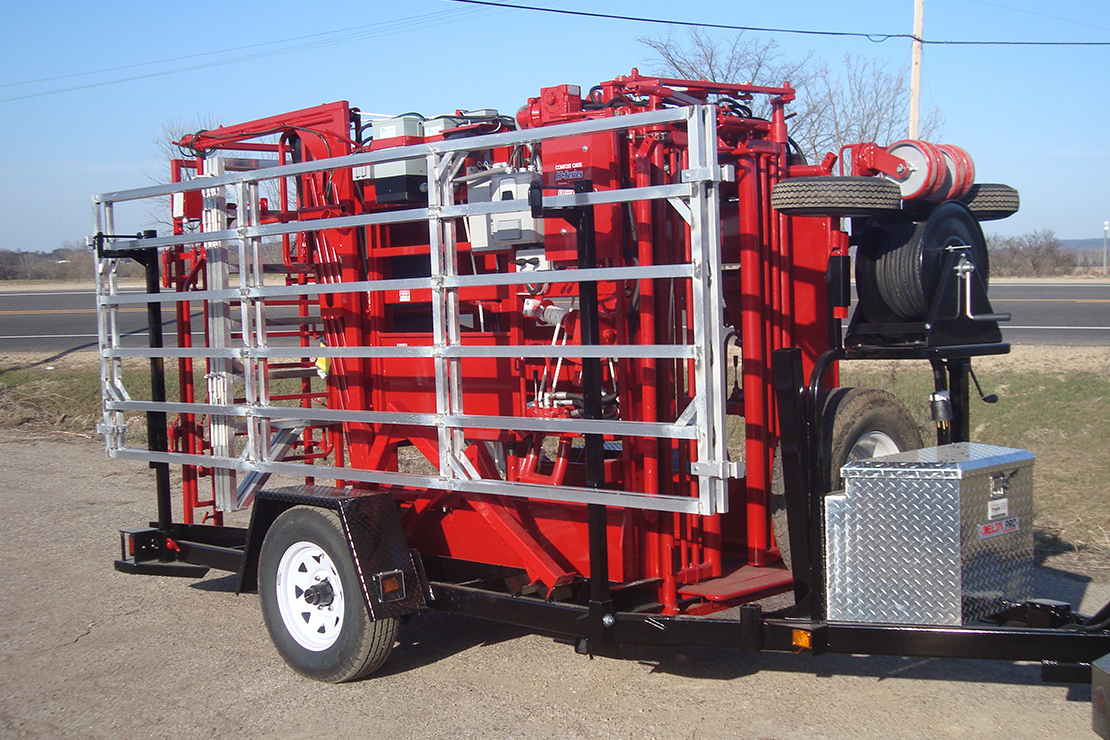

Model HT - Chute & Trailer Package

  • Serve large or small dairies
  • Designed to take the physical labor out of hoof trimming, focus on your technical expertise
  • Quality components stand the test of time and keep you on the job
  • Loading and unloading is fast, trim your first cow in five minutes
Chute • Canopy • Wheel & Caster Set • Gate Frame • 4-6FT Aluminum Gates • 200ft Electrical Cord • Single or Tandem Axle Trailer. Additional aluminum gates in various sizes also available.
Height
7 ft 10 in
2.38 m
Width
7 ft
2.13 m
Length
15 ft 6 in
4.72 m
Weight
5,580 lbs
2,530 kg
Min. Working Area
10 ft x 12 ft
3 m x 4 m
Total Height
7 ft 10 in
2.38 m
Trailer Width
7 ft
2.13 m
Trailer Length
15 ft 6 in
4.72 m
Trailer & Chute Weight
5,580 lbs
2,530 kg
Unloading Width Clearance
8 ft
2.45 m
Unloading Height Clearance
8 ft 6 in
2.7 m
